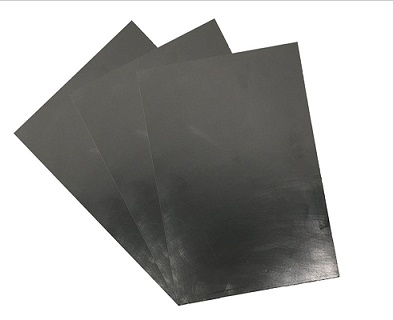

Graphite Gasket Reinforced With Metal Foil

Description
The gasket is made from graphite as homogeneous, reinforced by metal foil.
98% pure exfoliated graphite compression with adhesives.

Prime Features
> Widest temperature range.
> Very easy to cut: although large gaskets may need support during carriage and fitting.

Specifications
> Density: 1.0g/cm3
> Compressibility (ASTM F36A): 15~35%
> Recovery (ASTM F36A): >/= 20%
> Pressure: 200bar
> Temperature: -240~+550
> PH: 0~14

Dimension
ASME B 16.21, DIN2690, And according to your requirements

More informations, please click the "PDF" download or contact with us.
Click here to download the Kaxite Graphite Gasket Reinforced With Metal Foil product guide pdf.
